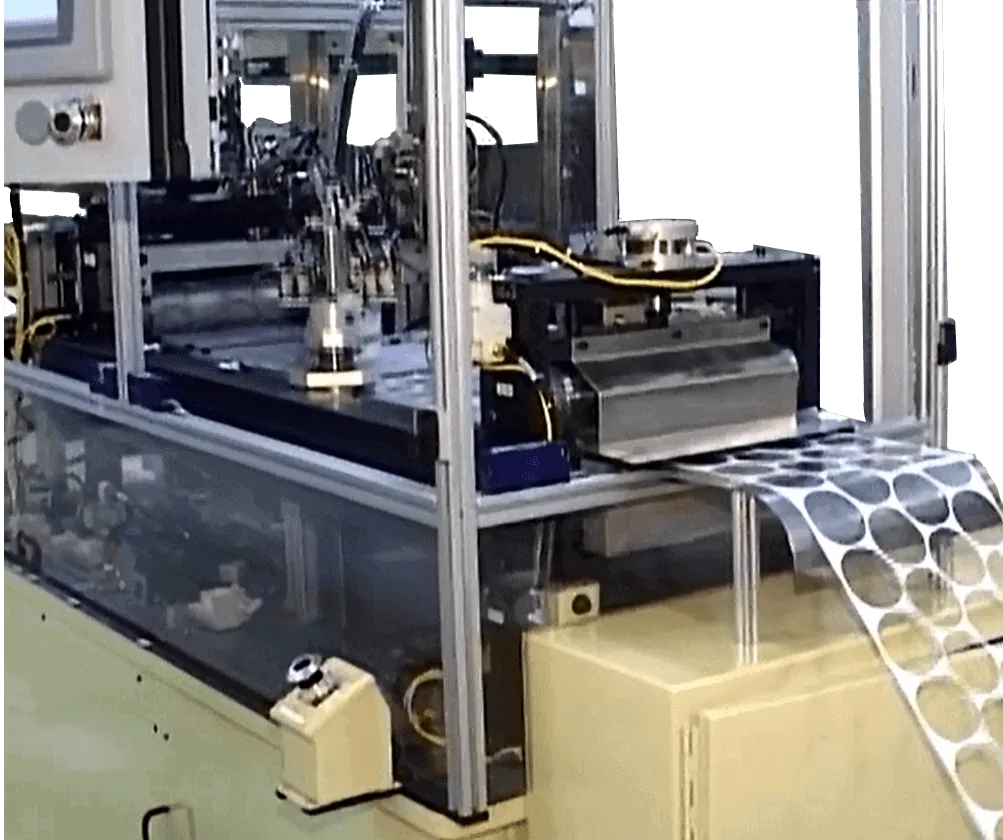

We provide custom-built roller die liner machines for cap lining with all types of closures. As a trusted cap lining machine manufacturer, we ensure that liner materials, fed with reels into the machines, are precision cut to specific patterns using specially designed roller dies. Our roller dies can cut flat, round shapes from rolls of cap lining materials. CAM-actuated slides with tooling heads transfer the shaped liner material into the closures.

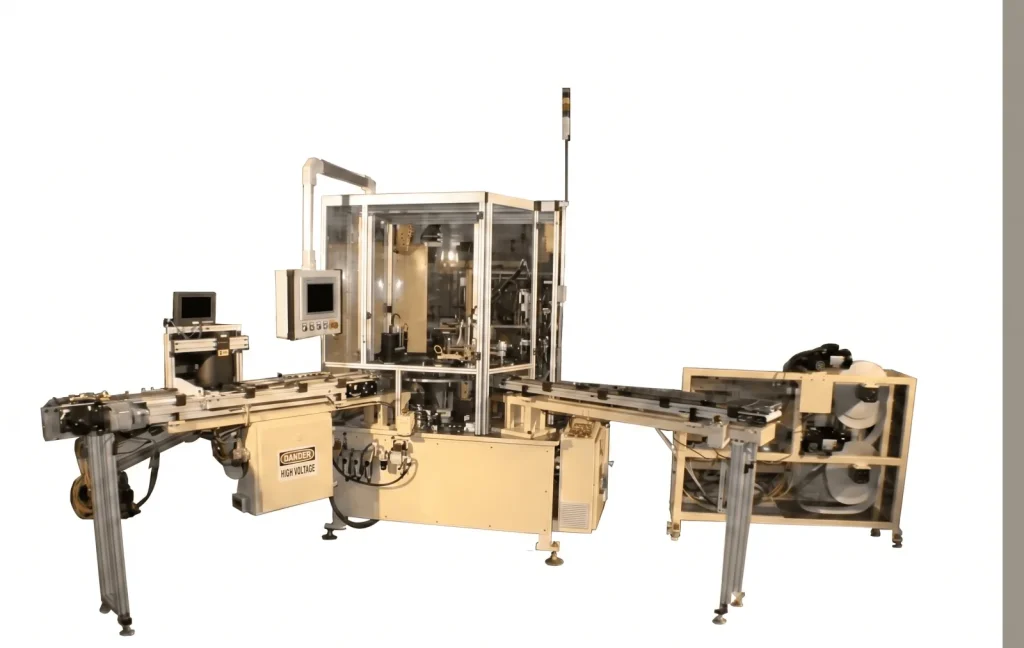

Die liner machines with multiple insertion tooling can be built to fill liner material in up to 1200 closures per minute. Each lining machine is available with vibratory, waterfall, or centrifugal feeders, and in-line tracks for continuous flow of parts in the production line. If required, die-reelers, motorized stock feeders, automatic changing and loading of liner material, scrap re-reelers, or choppers can also be added. Our closure lining equipment can be integrated with secondary closure processing equipment such as closing or assembly cap machines.

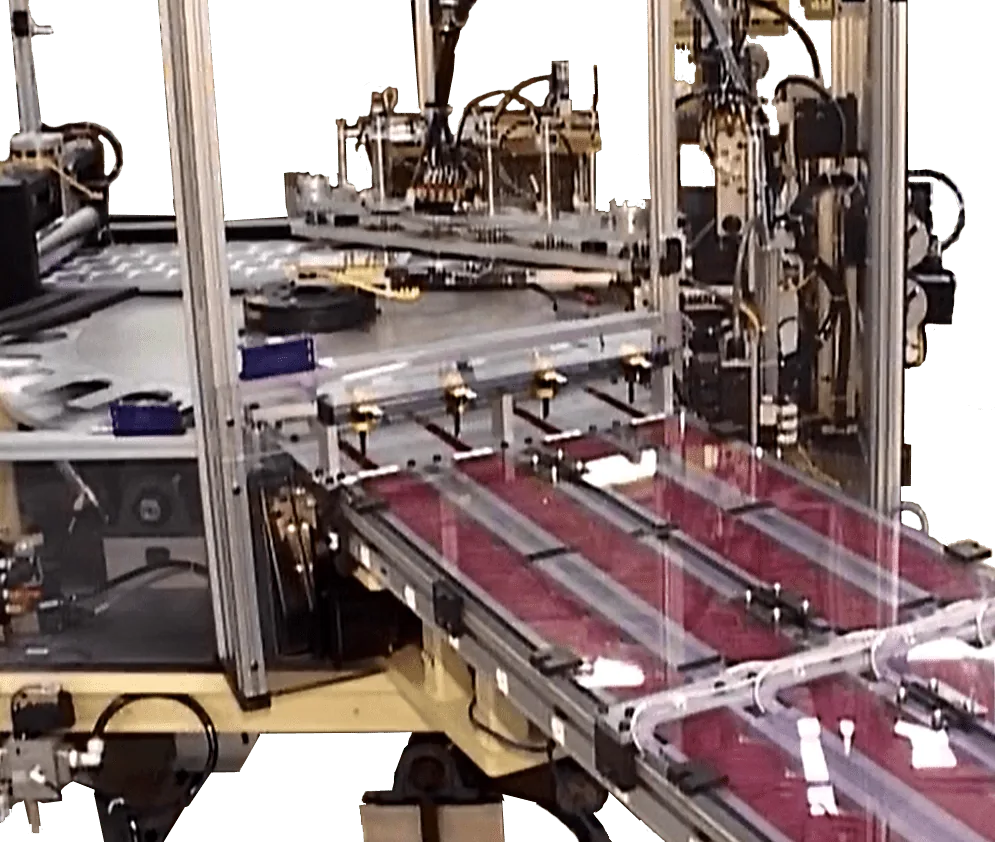

Tooled for 1, 2, 3, 4, or 6-up configurations, the rotary die we use cuts with ease and only requires reduced maintenance. Station tooling mounted to steel plates can be hardened and ground. Pinch points as well as rotating areas are guarded according to the best practice principles of machine design and OSHA standards. Perimeter guarding can be fabricated with clear polycarbonate panels as well.
From each and every closure lining machine, our customers can expect longevity and reliability due to our use of mechanical and servo-driven motions. Our skilled workforce is all under one roof, allowing for complete construction and product accountability within our shop. We use both conventional and state-of-the-art CAD/CAM and wire EDM machines to fabricate the components. Our range of closure lining machines ensures precise and consistent performance, meeting the highest standards in the industry.
Industries and Applications
As a trusted cap lining machine manufacturer, Central Machines designs equipment that meets the rigorous demands of a wide range of industries. Our precision lining machines and integrated assembly cap systems deliver consistent performance across high-volume and high-compliance sectors.
Consumer / Household
From personal care items to household chemicals, our systems support reliable sealing for:
- Shampoo and lotion bottles
- Cleaning solution containers
- Over-the-counter health products
Our lining machines handle a wide variety of cap styles and liner materials to ensure leak-proof seals and retail-ready finishes.
Electrical & Electronics
Products in these sectors require tamper-resistant and contamination-proof packaging:
- Battery caps and terminal enclosures
- Small component housings and microelectronics packaging
Our assembly cap solutions offer high-speed automation while maintaining precise control for sensitive components.
Food and Beverage
We deliver food-safe performance for closures in:
- Sauces, dressings, condiments, and juices
- Bottled water, carbonated drinks, and dairy products
Our lining machines ensure hygiene and freshness through exact liner placement—available with vision inspection and FDA-compliant material handling.
Medical / Pharmaceutical
Built for strict compliance and sterility, our systems serve:
- Prescription medicine bottles
- Nutraceutical and supplement packaging
- Diagnostic kits and single-use medical caps
Central Machines provides precision liner insertion and seamless assembly cap integration to support cGMP environments and traceability.
Specifications
| Closure Type | Round Flat Closure |
|---|---|
| Form of Product | Liner Material – Supplied on reels Round Flat Closure – Supplied in bulk |
| Feeder Type | Centrifugal Feeders In-Line Tracks Vibratory Feeders |
| Production Rate Ranges | Up to 1200 parts per minute |
| Machine Platform | Cap Liner Machine with Roller Die Configuration Conventional Punch & Die Configurations |
| Die Configuration | Precision Rotary Die (1, 2, 3, 4 or 6-Up) |
| Machine Features | De-reeler Motorized Stock Feeder Scrap re-reeler Cam actuated slide with tooling head Operator Interface Automatic Liner Material Changes Other Options Available Scrap |
| Tooling | Hardened and Ground Station tooling mounted to ground steel top plate, supported by fabricated steel base Tolerance: +/- 0.001” |
| Safety Guarding Options | Electrically interlocked guarding Guarding for pinch points and rotating sections Perimeter guarding with clear polycarbonate panels Safety Relays |
Design Options
| Feed Systems | Vibratory feeders Centrifugal feeders Water fall feeders Step feeders Accumulation dials |
|---|---|
| In Feed Systems | Power driven conveyors tracks Regenerative blower tracks Compressed air tracks Vibratory inline tracks |
Inspection & Testing
| Testing Process | 24 hour non-stop dry run test Final Debugging Hypot test for electrical test on connectors Multi-stage load test Standard Checklist |
|---|
More Information
| CAD Software Used | Autodesk Inventor |
|---|---|
| Other Services Available | Automation simulation through CAD designing software Retooling of standard machines and other manufacturer’s machines |
| Industries Served | Consumer/Household Electrical Electronics Food and Beverage Medical/Pharmaceutical |
Additional Options
| Product Placement Detection | See through fiber optic sensors Convergent beam sensors Laser sensors Probe tooling with sensors |
|---|---|
| Pre Feeders | Elevator hoppers Vibratory hoppers Live bottom hoppers |
| Liner Material Handling | De-reeler system holding two reels of liner material Automatic loading and changing of liner material into machine Liner scrap chopper Scrap liner re-winder |
| Die Removal Systems | Electric wench with slide |
| Product Assembly Testing | Vision system inspections Automatic ejecting of product to sampling bins |
| Pack Out Systems | Carton handling systems with powered or roller conveyors Stacking Robotic packaging Two position carton diverters |
| Operator Interface | Touch screen with machine diagnostics and data acquisition Push button Message display units Placard displays |
Seamless Closure Lining Starts Here – Build Your Perfect Solution with Central Machines, Inc.!
Ready to enhance your production line with high-performance closure lining machines? As a trusted cap lining machine manufacturer, we deliver custom-built solutions that offer precision, speed, and reliability—tailored to meet your unique manufacturing needs. Whether you’re looking for advanced cap lining capabilities, integrated assembly cap systems, or complete closure lining equipment, we’ve got you covered. Contact us today to discuss how our machines can improve your production efficiency and quality. Let us help you take your operations to the next level!
